GPU Modules

3U VPX GPU Cards

Equipped with NVIDIA CUDA and Tensor machine learning cores, our 3U VPX GPU boards offer TFLOPS processing capability alongside maximum memory bandwidth for the most compute-intensive tasks.

Product Name	Product Image	Generation	Memory	Memory Bandwidth	Features	PCIe Configuration

VPX3-4935 GPU Processor Card, Aligned with the SOSA Technical Standard	NVIDIA Quadro Turing RTX5000E (3072 CUDA cores, 384 Tensor cores)	16 GB GDDR6	448 GB/s	4 Video Ports out (DP, DVI, or HDMI)	x16 Gen 3
VPX3-4936 GPU Processor Card, Aligned with the SOSA Technical Standard	NVIDIA Quadro Turing RTX5000E (3072 CUDA cores, 384 Tensor cores)	16 GB GDDR6	448 GB/s	4 Video Ports out (DP, DVI, or HDMI)	x16 Gen 3
VPX3-493 3U VPX GPU with NVIDIA Turing T1000	NVIDIA Turing	GDDR6			x16 Gen 3
VPX3-4933 GPU Processor with NVIDIA GP104/Pascal 5200 GPU	NVIDIA GP104/Pascal 5200 (2560 CUDA cores)	16GB GDDR5	243 GB/s		x8 or x16 Gen 3

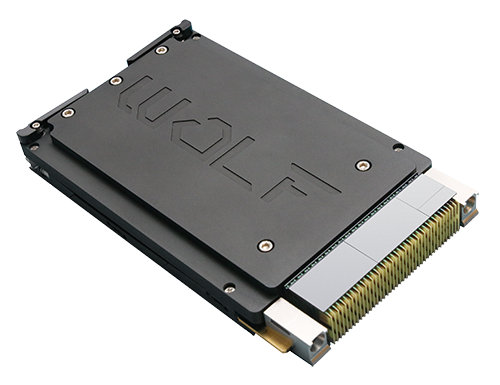

VPX3-4925 GPU Processor with NVIDIA Quadro Turing TU106/RTX3000E	NVIDIA Quadro Turing TU106-RTX3000E (2304 CUDA cores, 288 Tensor cores)	6 GBs GDDR6	336 GB/s	4 Video Ports out (DP, DVI, or HDMI)	x16 Gen 3
VPX3-4924 3U VPX GPU Processor Card with NVIDIA Tesla Pascal P6	NVIDIA Tesla Pascal (2048 CUDA cores)	16 GB GDDR5	192 GB/s		x16 Gen 3

6U VPX GPU Modules

Answering the growing demand for artificial intelligence and high-performance processing in deployed EW and ISR applications, our 6U VPX GPU modules are designed to deliver advanced capabilities in a highly rugged board.

Product Name	Product Image	Generation	# of CPUs	Memory	Memory Bandwidth	Features	PCIe Configuration

VPX6-4955 Dual NVIDIA Quadro Turing TU104/RTX5000E GPU Module	NVIDIA Quadro Turing TU104/RTX5000E (3072 CUDA cores, 384 Tensor cores)	2	2 x 16GB GDDR6	448 GB/s	4 Video Ports out (DP, DVI, or HDMI)	x16 Gen 3
VPX6-4953 GPU Processor with dual NVIDIA GP104/Pascal 5200 GPUs	NVIDIA Pascal Quadro P5200 (2560 cores)	2	2 x 16GB GDDR5	243 GB/s	8 independent DisplayPorts++ 1.4, video outputs	x16 Gen 3

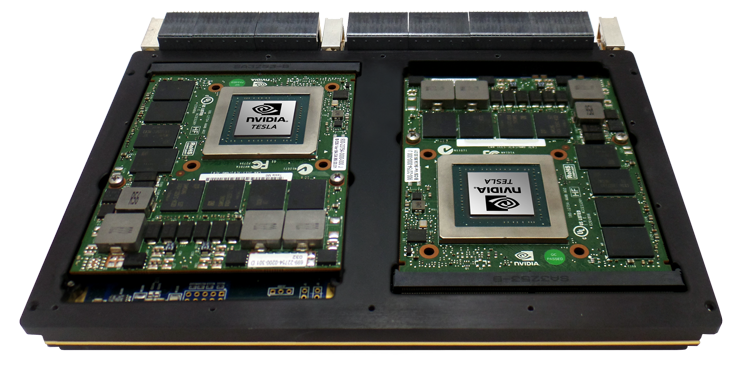

VPX6-4944 6U VPX GPU Processor Card with Dual NVIDIA Tesla Pascal P6	NVIDIA Pascal Tesla P6	2	32 GB GDDR5	192 GB/s		x16 Gen 3

XMC GPU Modules

Delivering powerful capability in a minimalistic footprint, these cards add GPU processing without occupying an extra system slot.

XMC-4902 GPU Processor with NVIDIA Quadro Pascal		GPGPU	NVIDIA Quadro Pascal GP107 (768 CUDA cores)	4 GB GDDR5 memory, 96 GB/s max memory bandwidth, 4 independent video outputs	x8 Gen 3	XMC
